BEAM050140-2Z軸承
我們不僅提供SKF BEAM050140-2Z軸承，還提供SKF品牌的其他品牌產品，以及SKF BEAM050140-2Z軸承的替換型號，萬千種型號，任您選擇。
型號：BEAM050140-2Z
品牌：SKF
內徑：50
外徑：140
厚度：54
系列：角接觸推力球軸承 for screw drives, double direction, for bolt mounting
【
手機版 BEAM050140-2Z軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18924187999 郵箱：sales@gzbearing.cn

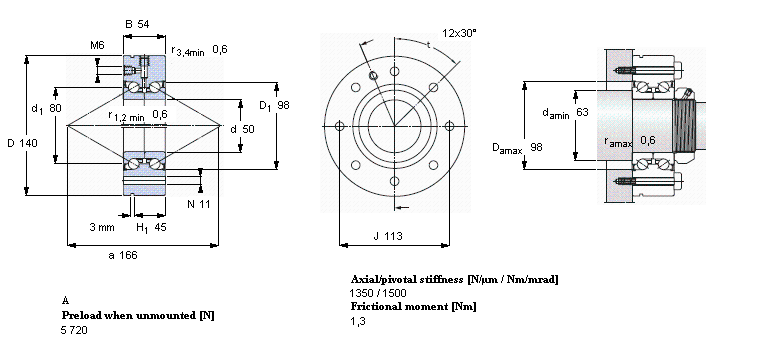

SKF BEAM050140-2Z尺寸圖紙
BEAM050140-2Z軸承基本參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 50 | 140 | 54 | 112 | 250 | 9,3 | 2800 | 4,70 | BEAM 050140-2Z | BEAM 50/140/Z 7P60 | |
角接觸推力球軸承 for screw drives, double direction, for bolt mounting
