7010CE/HCP4A軸承
SKF我們不僅提供SKF 7010CE/HCP4A軸承，還提供SKF品牌的其他品牌產品，以及SKF 7010CE/HCP4A軸承的替換型號，萬千種型號，任您選擇。
型號：7010CE/HCP4A
品牌：SKF
內徑：50
外徑：80
厚度：16
系列：角接觸球軸承, 精密, CE/HC, contact angle 15°, hybrid
【更新日期：2016/8/3 電腦版 7010CE/HCP4A軸承】

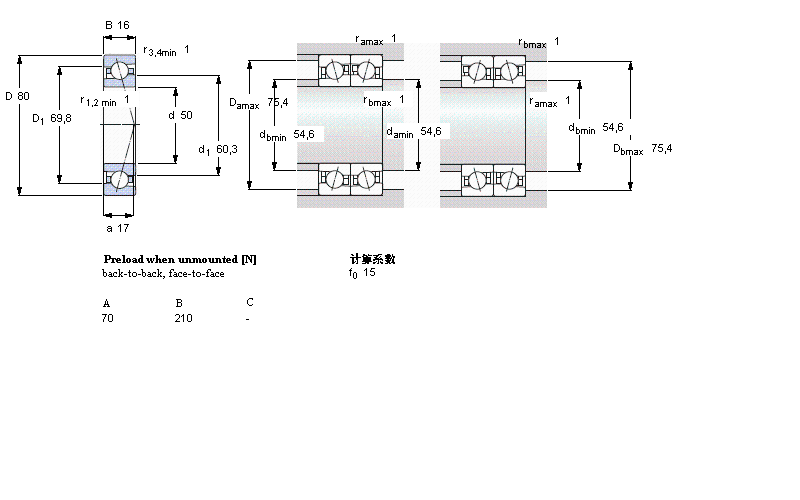

7010CE/HCP4A軸承
| 角接觸球軸承, 精密, CE/HC, contact angle 15°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 80 | 16 | 14,8 | 9,5 | 0,4 | 28000 | 43000 | 0,23 | 7010 CE/HCP4A | - | |
